What Can You Use to Cut Sheet Metal (How To)

There are various types of tools that can be used to cut sheet metal. These include tin snips, which are relatively inexpensive and are probably the best tool to use when cutting sheet metal. Other tools like an angle grinder can also be used effectively to cut sheet metal. Read on to learn all about the many different types of tools which can be used to cut sheet metal.

If you want to know what you can use to cut sheet metal, the answer is that tin snips are probably best for cutting sheet metal, but many other types of saws and grinders can also be used effectively, including a Dremel, an Angle Grinder, a Bandsaw, an Oscillating Tool and even a Laser.

Tools to cut sheet metal

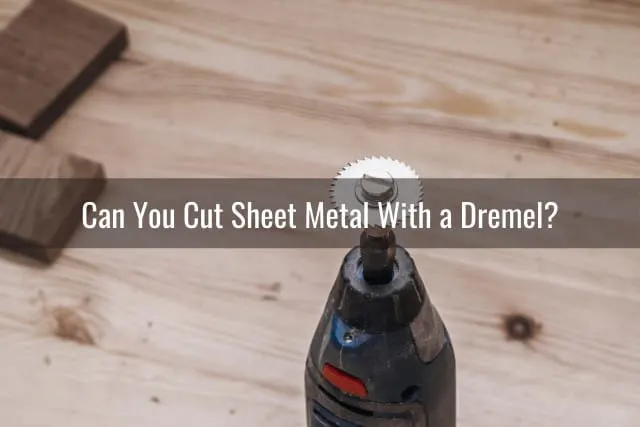

Can You Cut Sheet Metal With a Dremel?

Tools to cut sheet metal

A dremel operates at high speed and can grind, drill, and cut. When you use the high speed one and one quarter inch cutoff wheel attachment, you can easily cut sheet metal.

If you want to cut sheet metal with a dremel, first, go ahead and loosen the drill head with the wrench provided with the dremel. Then, go ahead and carefully install either a cutoff wheel or a high speed one eighth inch cutter.

After drawing a cut line, use low adhesive tape along the cut line so you do not scratch the upper surface of the sheet metal strip.

Now, put the dremel in a position whereby the cutting wheel is at a right angle to the sheet metal. Use both hands to hold the dremel and be sure to keep your hands away from the ventilation holes. Then, set the RPM setting at 2000 rpm and then press the cutting wheel directly onto the sheet metal.

Can You Cut Sheet Metal With an Angle Grinder?

Tools to cut sheet metal

You can cut sheet metal with an angle grinder. It is usually best to use a diamond blade that can cut ferrous metal.

If you want to know how to cut sheet metal with an angle grinder, make sure that the bolts on the grinder are tightened properly. Press the angle grinder gently into the sheet metal and cut all the way through it. Then, allow the cut piece of sheet metal to fall safely to the floor.

Can You Cut Sheet Metal With a Bandsaw?

Tools to cut sheet metal

Usually, bandsaws are usually not used to cut very thin pieces of sheet metal. If a bandsaw is going to be used to cut sheet metal, the sheet metal that is going to be cut needs to be thicker than the cumulative depth of three band saw teeth.

If you want to know how to cut sheet metal with a bandsaw, first mark a cut line. Then, place the sheet metal on the plate and carefully push it toward the bandsaw blade with a steady pressure. The blade should now go completely through the sheet metal.

If you need to make another cut, simply withdraw the piece of sheet metal, rotate it and then push it toward the blade again.

Can You Cut Sheet Metal With a Circular Saw?

Tools to cut sheet metal

It is possible to cut sheet metal if you choose the correct blade for the job and follow the normal cutting procedure as outlined below.

If you want to know how to cut sheet metal with a circular saw, make sure to choose the correct blade, which usually should be a diamond saw blade. Then, insert the blade into the Circular Saw. Now, adjust the blade so that it is no more than one quarter of an inch thicker than the sheet metal is.

Clamp the sheet metal against your work bench, which will allow the sheet metal to be held against the blade.

Can You Cut Sheet Metal With a Hacksaw?

Tools to cut sheet metal

Sheet metal can be cut with a hacksaw just like it can be used when cutting other types of metal.

If you want to know how to cut sheet metal with a hacksaw, first draw your cut line. Use a thick iron angle to hold the sheet metal while you are cutting it. Use a metal cutting blade and make sure the teeth are pointing away from you. Use three in one oil on the blade for lubrication.

Can You Cut Sheet Metal With a Jigsaw?

Tools to cut sheet metal

A jigsaw can be used to cut sheet metal as outlined below.

If you want to know how to cut sheet metal with a jigsaw, first, lay the piece of sheet metal on a stable, flat surface. Use a straight edge or ruler and a permanent marker to draw your cut line. Now, cut straight through the sheet metal.

Can You Cut Sheet Metal With a Laser?

Tools to cut sheet metal

Lasers are excellent cutting tools to use to cut sheet metal. Luckily, lasers do not cause much burring as they tend to melt the sheet metal instead of cutting it.

If you want to know how to use a laser to cut sheet metal, be aware that lasers can cut through sheet metal at a rate of twenty to seventy inches per minute. Lasers are automated and can be programmed to cut sheet metal overnight. Generally, lasers can cut through sheet metal with great precision.

Can You Cut Sheet Metal With an Oscillating Tool?

Tools to cut sheet metal

Oscillating tools can also be used to cut soft metals like sheet metal without problems or complications.

If you want to know how to cut sheet metal with an oscillating tool, use a bi-metal saw. Make sure that the piece of sheet metal is fully stabilized for cutting. Be careful when cutting through the sheet metal as it will tend to flex up and down as it is cut with the oscillating tool.

Also, be sure to clamp the sheet metal close to the cut line.

Can You Cut Sheet Metal With a Router?

Tools to cut sheet metal

The good news is that a router can be used to cut sheet metal by following the steps as outlined below.

If you want to know how to cut sheet metal with a router, use a carbide bit and be sure to cut in the direction that the blade is turning. Try to keep the router as flush as possible to the sheet metal. Inspect the router bit carefully to make sure it is inserted properly before beginning to cut.

In addition, you will see a line on the bit indicating where it should be placed into the router.

Can You Cut Sheet Metal With a Table Saw?

Tools to cut sheet metal

It is possible to cut sheet metal using a table saw if you make sure to select a blade that is specifically designed to cut metal. Great care should always be taken to make sure that you are cutting the sheet metal very slowly and that you are using all the proper safety equipment.

If you want to know how to cut sheet metal with a table saw, pick a carbide metal cutting blade. Then determine the best feed rate. Adjust the table saw Fence to keep the sheet metal in line on the table saw. Make sure the table fence is smooth and fully aligned.

This will help to avoid the risk of any type of kickback.

Also, be sure to set the correct Blade Height. Most commonly, it is set just above the level of the sheet metal.

You can also use a Cut Off Block to try to avoid any type of kickback. Clamp the Cut Off Block to the side of your table and be sure to keep the Table Saw Fence safely away from the Table Saw Blade.

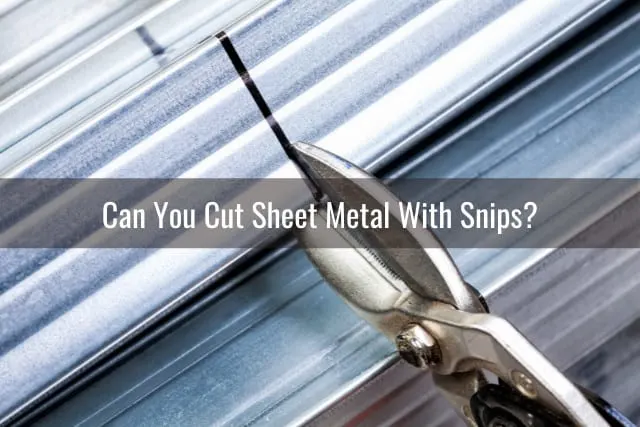

Can You Cut Sheet Metal With Snips?

Tools to cut sheet metal

Snips are not very expensive to purchase and can cut sheet metal easily. In addition, snips have blades that are quite sharp so that as they cut, they leave an edge that is smooth.

Copyright protected content owner: ReadyToDIY.com and was initially posted on March 21, 2022.

If you want to know how to cut sheet metal with snips, first, make sure to put on all your typical safety goggles and other safety equipment. Then, hold the tin snips as you would hold a typical pair of scissors. Open the blades in a broad manner and make cuts that are smooth as well as elongated.

If you find that one side of the sheet metal is beginning to roll up, just roll it back down and continue until you have finished cutting the sheet metal.

You can also try using metal air shears, which are useful if you need to cut long metal sheets or if you are cutting bulk amounts of sheet metal.

How to Cut Sheet Metal Properly

Man worker confused

If you want to cut sheet metal properly, it is very important to follow the simple steps as outlined below. Snips are usually the best tool to use to cut sheet metal properly.

If you want to know how to cut sheet metal properly, follow safety measures and use a pair of snips appropriate for cutting sheet metal. Place the piece of sheet metal on a sturdy surface. Draw your cut line. Open the snips up and insert the sheet metal into the snips as deeply as possible.

Copyright article owner is ReadyToDiy.com for this article. This post was first published on March 21, 2022.

Then, squeeze the handles together to cut the sheet metal.
