Titanium is a unique metal that is used for a wide variety of purposes. It is lightweight but at the same time, it is as strong or stronger than steel. This brings about some unique issues when cutting titanium. What tools should be used for that process?
Some of the best tools used for cutting titanium include band saws, plasma cutting, and laser cutting. These types of tools provide accuracy without destroying the titanium or potentially causing a problem, such as a fire.
As you can imagine, the simple act of cutting titanium is not something that should be taken lightly. After all, you need to consider the unique qualities of the metal that you are cutting along with the type of blade that should be used for that purpose.
If you are cutting titanium with a power tool, such as a bandsaw, then a carbide blade is going to be the best choice possible. Carbide blades provide the strength that is necessary for cutting titanium alloys. It also lasts longer than other types of blades.
That doesn’t mean, however, that you can simply fire up the bandsaw and begin cutting a sheet of titanium. If you were to do so without forethought, you could end up damaging the blade quickly or perhaps even ruining the titanium sheet.
The reason why that is the case is that titanium will heat quickly when it is machined in any way. In most cases, you will have to use a steady stream of water along with the bandsaw to ensure that problems don’t occur when cutting titanium.

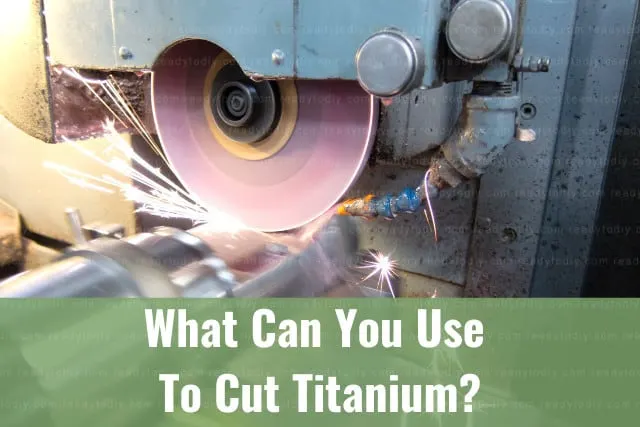

What Can You Use To Cut Titanium?
As is the case with cutting any type of material, it’s a good idea to familiarize yourself with the material itself before you begin working with it. That is especially true of titanium, which is a very unique item in comparison with other metals, such as steel or aluminum.
Titanium is mined in several different parts of the world. Although the largest producer of titanium is China, it is mined in areas such as Japan, Russia, Sierra Leone, and South Africa. Even Australia does its fair share of titanium mining as well.
Interestingly, titanium can also be mined on the moon. At some point in the future, this may be an important fact to consider because titanium is often used in space exploration because of its lightweight nature and strength.
Pure titanium is approximately as strong as steel but often, there are various titanium alloys that are included in the mix to offer additional strength. Even when it is pure, however, titanium is very hard to cut.
There are different types of alloys that can go into titanium and these can make a difference in the strength of the finished product.
Alpha alloys are meant to be machine cut at a high speed. They are mixed in with the titanium but are softer than titanium.
Beta alloys, on the other hand, contain high levels of material such as chromium and vanadium. They are very strong.
At times, both alpha and beta alloys will be mixed into titanium. This makes it a very durable, yet workable material that is often used for jet engines.
Finally, you have aluminides, which make titanium difficult to cut but it does lower the overall weight of titanium, which is already lightweight.
Throughout this article, we will discuss some of the different tools that can or may not be used to cut titanium. Before we do so, it’s a good idea to consider the health and safety of cutting titanium.
Generally speaking, exposure to titanium is not overly dangerous. If you are cutting titanium and it is respirable, however, you would want to wear a face mask to ensure you are not breathing in too much of the powder. Titanium dust can lead to lung irritation, difficulty in breathing, and coughing.
You should also protect your eyes and skin because titanium powder can lead to irritation. Wearing a long sleeve shirt and a good pair of safety glasses or goggles is a good idea.
Let’s consider some of the tools that you might use to cut titanium.
Can You Use Plasma Cutter To Cut Titanium?
As was discussed, plasma cutters are one of the tools that can be used for cutting titanium. That doesn’t mean, however, that you can simply pick up a plasma cutter and begin cutting.
Plasma cutting is a versatile method of cutting material that can be used for titanium. Before you begin cutting with a plasma cutter, however, you should understand fully how to work the cutter and how to work with titanium. Doing so improperly can cause some problems.
One of the issues that you may experience when cutting titanium with a plasma cutter is the possibility of smoke being generated. That smoke can be bad for your health, so you should work in a well-ventilated area and wear a respirator with the appropriate filter.
On rare occasions, you may experience some other issues that occur from the heat associated with plasma cutting. This can include some of the alloys popping or smoking as you are cutting the titanium. You also need to be cautious that you don’t catch anything on fire.
Can You Use Laser To Cut Titanium?
Lasers are very versatile and they are used in many different DIY projects. If you have a CO2 laser available to you, can you use it for cutting titanium?
A CO2 laser makes an excellent choice for cutting a sheet of titanium. You can use a laser to essentially burn the titanium from the heat that is generated. It will make a clean cut when it is done properly and you can cut it to a very close range.
One of the factors that need to be considered when cutting titanium with a laser is the alloys that are present in it. Not all of the alloys are going to work nicely under the heat generated by a laser and that can cause some problems.
Similar to the direction given for cutting titanium with a plasma cutter, you should always work in a well-ventilated area and wear the necessary respiratory protection in case it generates smoke.

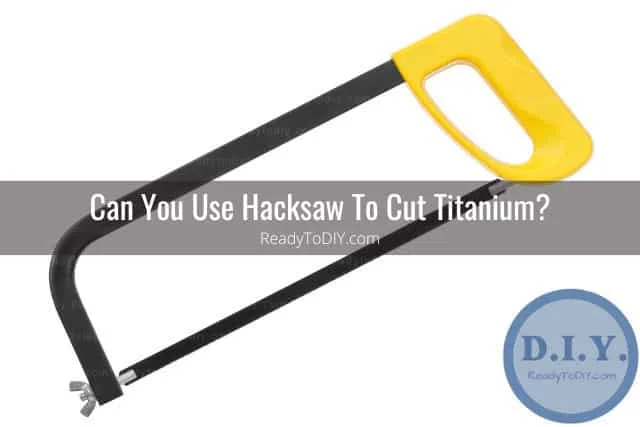

Can You Use Hacksaw To Cut Titanium?
Hacksaws are very common tools that are used for cutting metal. Titanium is a type of metal that is used for very specific purposes. Can a hacksaw be used to cut this type of metal?
A hacksaw can be used for cutting titanium but you need to use it properly. Make sure that the blade is carbide if at all possible and that you change to a new blade before you begin cutting. Doing so will make it possible for you to cut the titanium properly.
As you can imagine, it is going to take longer for you to cut a piece of titanium with a hacksaw than it would if you were using a bandsaw or another power tool. At the same time, however, it may be easier for you to guide the saw blade for more accurate cutting.
One factor to consider is the number of teeth per inch. Generally speaking, you can use a saw blade in the area of 20 TPI and it will cut through the titanium just fine.
At the same time, you should use caution when cutting titanium, regardless of whether you are using a hand tool or a power tool. Some cutting oil may be necessary to ensure the job goes well.
Can You Use Dremel To Cut Titanium?
If you have a Dremel tool available, you already realize that it is a very handy item for crafting and for use around the home. If you have to cut a small piece of titanium, can a Dremel tool stand up to the task?
If you have a cutting wheel on a Dremel tool, you can cut titanium fairly easily. It is sometimes used for cutting small pieces of titanium, such as a ring but you wouldn’t want to cut it while it was on someone’s finger. Additionally, be cautious when using a Dremel tool because the speed of the wheel could cause problems.
Generally speaking, you want to be cautious that you don’t heat up the titanium too much and too quickly. If you are using a Dremel tool, you need to stop every once in a while to allow it to cool down.
Can You Use Grinder To Cut Titanium?
Grinders are excellent tools to have around the home. We rely on them for many different reasons, including for cutting items that may be difficult to cut.
If you want to use a grinder to cut titanium, you have to use the proper attachments. A carbide blade is going to be the best choice and you should use the grinder at the lowest speed possible. Running a grinder too quickly could heat up the titanium and ruin the blade.
Although it certainly is possible to use a grinder for cutting titanium, it is not always going to be the best option. Sometimes, you just need to choose a different tool that is more appropriate to the task.
Grinders are sometimes used for cutting titanium when the finished product does not need to be reused. Keep that in mind, because using a grinder is not always going to give you the accuracy you need.
Can You Use Bolt Cutter To Cut Titanium?
Bolt cutters are very handy for cutting through locks or even for cutting chains. If you have something that is made from titanium, will bolt cutters stand up to the job?
Bolt cutters are regularly used for cutting titanium rings off of patients at hospitals. It works very well because it cuts the titanium without putting the patient in harm’s way, as would be the case if you used a grinder.
A bolt cutter works very well for cutting items, such as titanium rings. At the same time, however, you need to choose the appropriately sized cutter for that job.
When cutting the ring off of someone’s finger, you should also be cautious that you are not catching any skin in the process. It takes a steady hand, but it can be done.

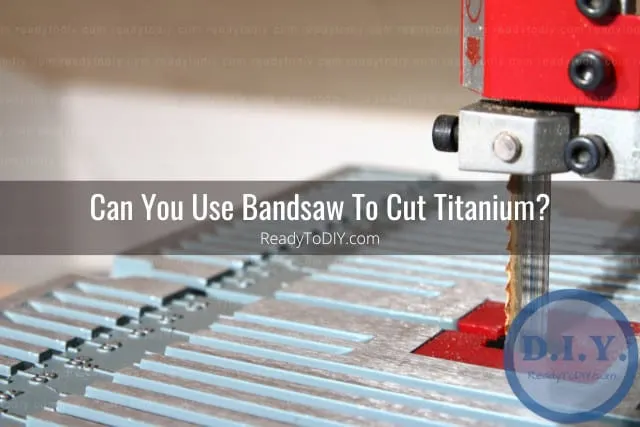

Can You Use Bandsaw To Cut Titanium?
If you have a bandsaw at your disposal, can it be used to cut titanium?
Bandsaws are an excellent choice for cutting titanium and are actually one of the better tools used for that job. Running the bandsaw at a relatively low speed will help keep the titanium from heating up too quickly and ruining the blade. Some people also run water over the blade as it is cutting the titanium to help keep things cool.
As far as power tools are concerned, you will not find one that is better suited for cutting titanium than a bandsaw. At the same time, however, you need to cut things slowly and make sure that you are paying careful attention to the work being done.
A bandsaw running at a slow speed is going to cut through titanium relatively quickly. Be cautious when doing so, especially as you are reaching the end of the mark and need to either make a turn or back out of the saw blade altogether.
Can You Use Chop Saw To Cut Titanium?
Chop saws are sometimes used as a method of cutting material very quickly. They are used for various types of wood and metals, but can you use them for titanium?
A chop saw is not the best tool for cutting titanium because it will cut too quickly and cause too much heat. As a result, the titanium may not act as you would expect and it could actually cause damage to the saw blade very quickly.
Even if you have a chop saw that is outfitted with a carbide tip blade, it should not be used unless you don’t have any other choices. For the most part, you are going to run into problems when trying to use a chop saw for cutting titanium.

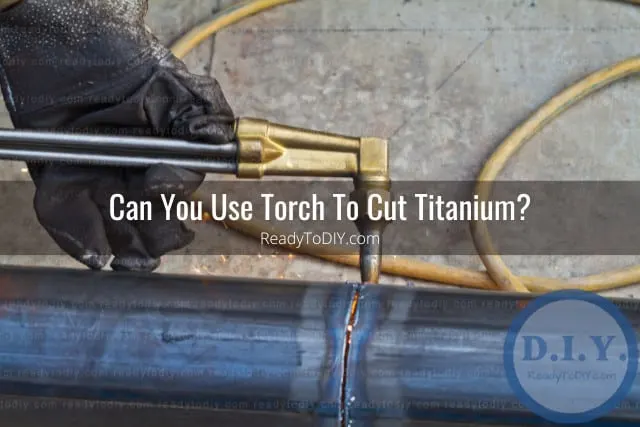

Can You Use Torch To Cut Titanium?
If you have a torch available, is it something that should be used for cutting titanium? Make sure that you read this before attempting it.
A torch is one of the better options available for cutting through titanium. It works very quickly and can make a cut that is as accurate as any other tool. There are some reasons, however, where you might find difficulty with using a torch, and they are primarily associated with safety.
Copyright protected content owner: ReadyToDIY.com and was initially posted on August 11, 2022.
Safety is of utmost concern and when you are using an oxygen-fueled torch for cutting titanium, you may be putting your health at risk. This is especially true as you cut through the titanium and smoke is being generated.
If you heat titanium, you are doing more than simply cutting through the metal. There are also various alloys that may be a part of the titanium and they are being heated up at the same time.
Heating some of those alloys could be problematic and may release gasses that are dangerous or perhaps even deadly. You can use a torch to cut titanium, but it is not the best choice possible.
How To Cut Titanium Correctly And Safely
Titanium is expensive, and you want to make sure that you are handling it properly so that you don’t waste any of it. In this section, we will consider how to cut titanium and how to do it safely.
Since titanium is not the easiest material to work with, it’s a good idea to consider the different options available for cutting. Generally speaking, you can use a bandsaw, plasma cutter, waterjet, or another form of mechanical cutting.
Perhaps the most common way for DIY enthusiasts to cut titanium is with a bandsaw. We will look into this method to ensure that you are doing it properly and safely.
1. Planning – Since you are going to be cutting material that is harder than usual and is expensive, you want to make sure that you cut it properly. This would require that you plan everything out in advance, including choosing where you will cut the material and the machine you will use to cut it.
2. Tool Selection – This DIY guide is associated with cutting titanium with a bandsaw. You should use a carbide-tipped blade and cut the material at a relatively low speed. In order to keep the titanium from heating and smoking or combusting, you should run water continually over the edge where it is cutting. This will also help to save the saw blade.
3. Mark – You should mark the titanium to ensure that you are cutting it in the proper area. You should also use something that will remain on the titanium long enough so that it doesn’t wash away if you are using water to cool it.
4. Cut – This is the time when you will actually cut the titanium. Cut it on a relatively slow speed and if necessary, stop cutting on occasion to allow everything to cool down.
Copyright article owner is ReadyToDiy.com for this article. This post was first published on August 11, 2022.
The primary methods of cutting titanium include using a bandsaw, plasma torch, laser, or machining tool. Care should be exercises that you are not cutting the titanium too quickly as to generate too much heat.
